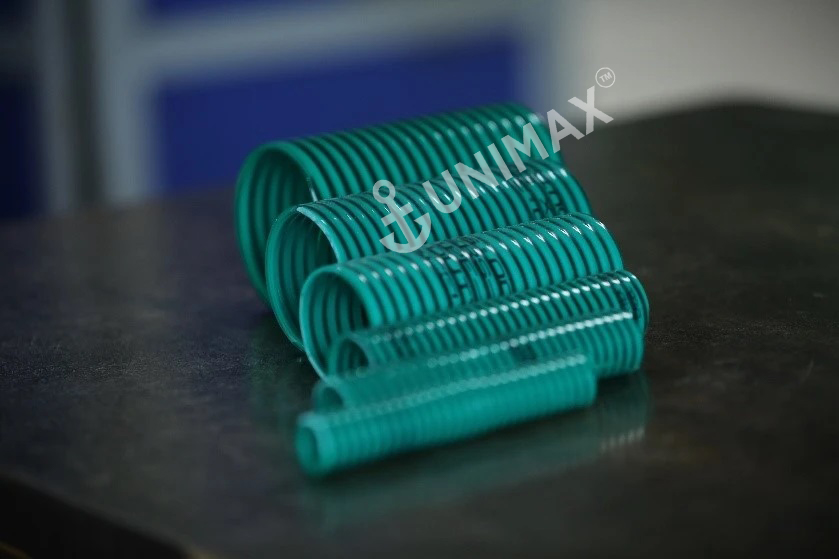

Unimax Medium duty suction hose pipe is strong flexible smooth plasticized PVC. It is shock resistant.
Medium duty suction hose pipe is used for low pressure Suction & Delivery of Water for Irrigation & Agriculture Purpose with Electro Mono Block & Oil Engines. I is also used in Delivery of Saline Water, Light Acids, and Alkalies & Other Chemicals except Solvents and also used For Conveying of Granules or Fine Particles of Raw Materials in Processing Industries.
| Size (mm) | Size (inch) | I.D. (mm | O.D. (mm) | Thickness (mm) | App WT Roll (kg) | Length Per Roll (mtr) |
|---|---|---|---|---|---|---|
| 20 | 3/4" | 20 | 23 | 2 | 6.5 | 30 |
| 25 | 1" | 25 | 30 | 2 | 7 | 30 |
| 30 | 1 1/4" | 30 | 36 | 2 | 10 | 30 |
| 40 | 1 1/4" | 38 | 43 | 2 | 11 | 30 |
| 50 | 2" | 50 | 57 | 3 | 18 | 30 |
| 65 | 2 1/2" | 65 | 71 | 3.5 | 27 | 30 |
| 75 | 3" | 75 | 84 | 4 | 37 | 30 |
| 100 | 4" | 101 | 112 | 5 | 70 | 30 |
Unimax Medium duty suction hose pipe is strong flexible smooth plasticized PVC. It is shock resistant.
Heavy duty suction hose pipe is used for high pressure Suction & Delivery of Water for Irrigation & Agriculture Purpose with Electro Mono Block & Oil Engines. It is also used in Delivery of pressurized Saline Water, Light Acids, and Alkalies & Other Chemicals except Solvents and also used For Conveying of Granules or Fine Particles of Raw Materials in Processing Industries. Heavy duty Suction hose pipe does not kink or bend when is use.
| Size (mm) | Size (inch) | I.D. (mm) | O.D. (mm) | Thickness (mm) | App WT Roll (kg) | Bending Radius (mm) | Working Pressure (bar) | Length Per Roll (mtr) |
|---|---|---|---|---|---|---|---|---|
| 20 | 3/4" | 19 | 23 | 2 | 7" | 45 | 7 | 30 |
| 25 | 1" | 25 | 30 | 2.5 | 9" | 55 | 7 | 30 |
| 30 | 1 1/4" | 31 | 36 | 2.5 | 12" | 75 | 6.5 | 30 |
| 40 | 1 1/2" | 38 | 43 | 2.5 | 15" | 95 | 5 | 30 |
| 50 | 2" | 50 | 57 | 3.5 | 22" | 120 | 4 | 30 |
| 65 | 2 1/2" | 63 | 71 | 4 | 32" | 160 | 4 | 30 |
| 75 | 3" | 75 | 84 | 4.5 | 42" | 270 | 3.5 | 30 |
| 90 | 3 1/2" | 90 | 99 | 4.5 | 50" | 290 | 3.5 | 30 |
| 100 | 4" | 101 | 112 | 5.2 | 75" | 310 | 3.5 | 15 |
| 110 | 4 1/2" | 110 | 121 | 5.5 | 75 | 310 | 3.5 | 15 |
| 125 | 5" | 126 | 139 | 6.5 | 55 | 340 | 3 | 15 |
| 150 | 6" | 152 | 167 | 7.5 | 75 | 350 | 3.5 | 15 |
| 200 | 8" | 203 | 221 | 9 | 55 | 400 | 2.5 | 6 |
